Annotation Slate

Annotation Slate

clean_slate(
  margin = grid::unit(c(t = 2.54, r = 4.2, b = 2.54, l = 2.54), units = "cm"),
  gp = grid::gpar(lineheight = 1, fontfamily = "Courier", fontsize = 9)
)

add_figure(page, gr, guide = FALSE, width = 1, height = 1)

add_header(page, left, right, ...)

add_footer(page, left, right, ...)

add_title(page, text, guide = FALSE)

add_note(
  page,
  text,
  guide = FALSE,
  str_width = 80,
  x = 0.1,
  skipped_lines = c(1, 0)
)

Arguments

margin

(`unit`)
top, right, bottom, left margins.
gp

(`list`)
graphical parameter, see [grid::gpar()].
page

(`grob`)
a page as initialised by `clean_slate()`.
gr

(`grob`)
a graphical object.
guide

(`logical`)
display rectangle delimitating a page area.
width, height

(`numeric` or `unit`).
left, right, text

(`character`)
annotation texts.
...

arguments passed to other functions.
str_width

(`numeric`)
maximal width.
x

(`numeric` or `unit`)
horizontal position.
skipped_lines

(`numerix`)
number of lines to skip.

Functions

  • clean_slate: start an annotation page.

  • add_figure: add a figure to a clean page.

  • add_header: add a header.

  • add_footer: add a footer.

  • add_title: add a title.

  • add_note: add a note.

Examples


library(magrittr)
library(ggplot2)

clean_slate() %>%
  add_figure(gr = circleGrob()) %>%
  grid.draw()


# Default margins are for an A4 page, change it for the plot viewer
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = circleGrob()) %>%
  grid.draw()

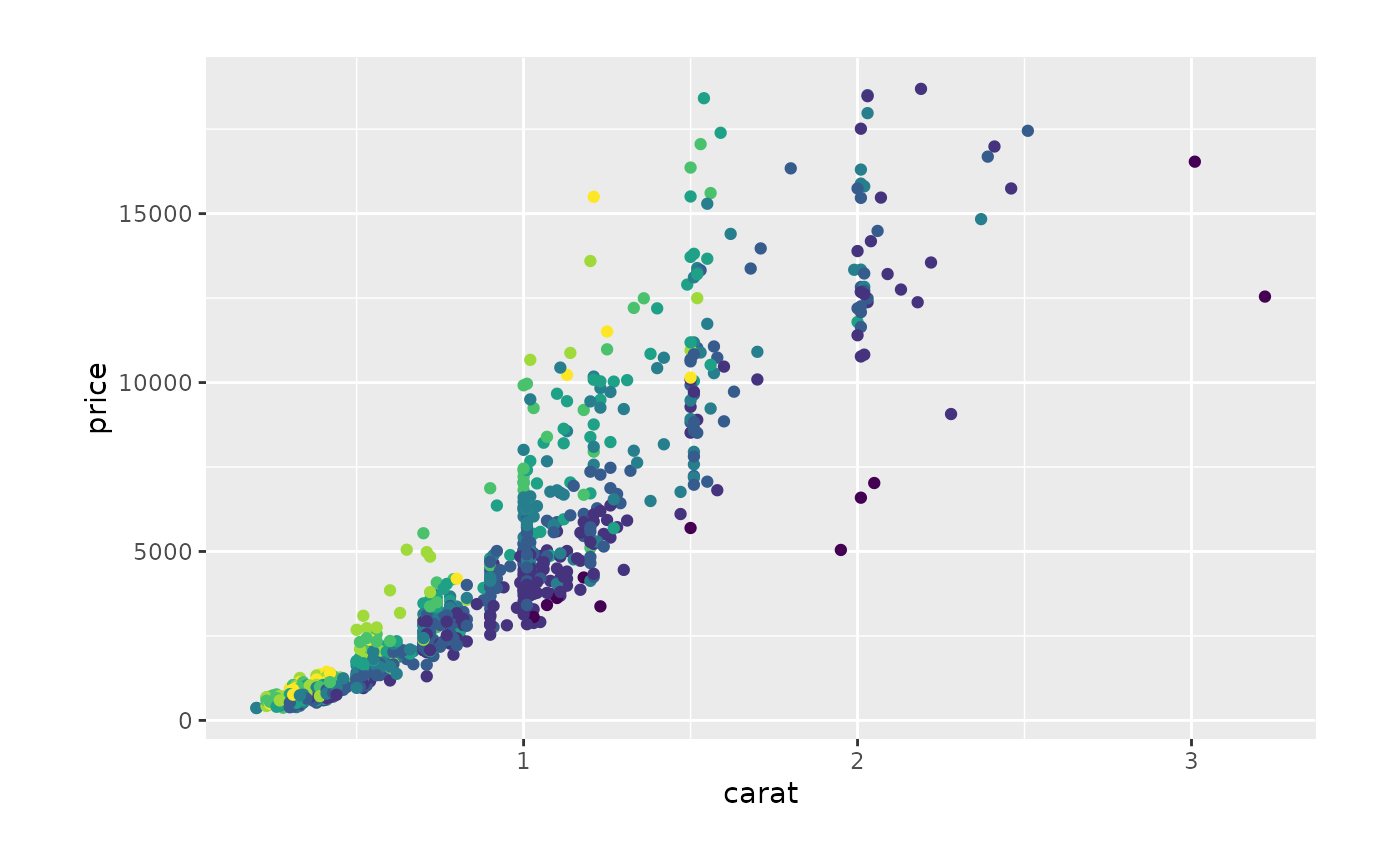

# Of course, it works with ggplot objects
dsamp <- diamonds[sample(nrow(diamonds), 1000), ]
gg <- ggplot(dsamp, aes(carat, price)) +
  geom_point(aes(colour = clarity), show.legend = FALSE)

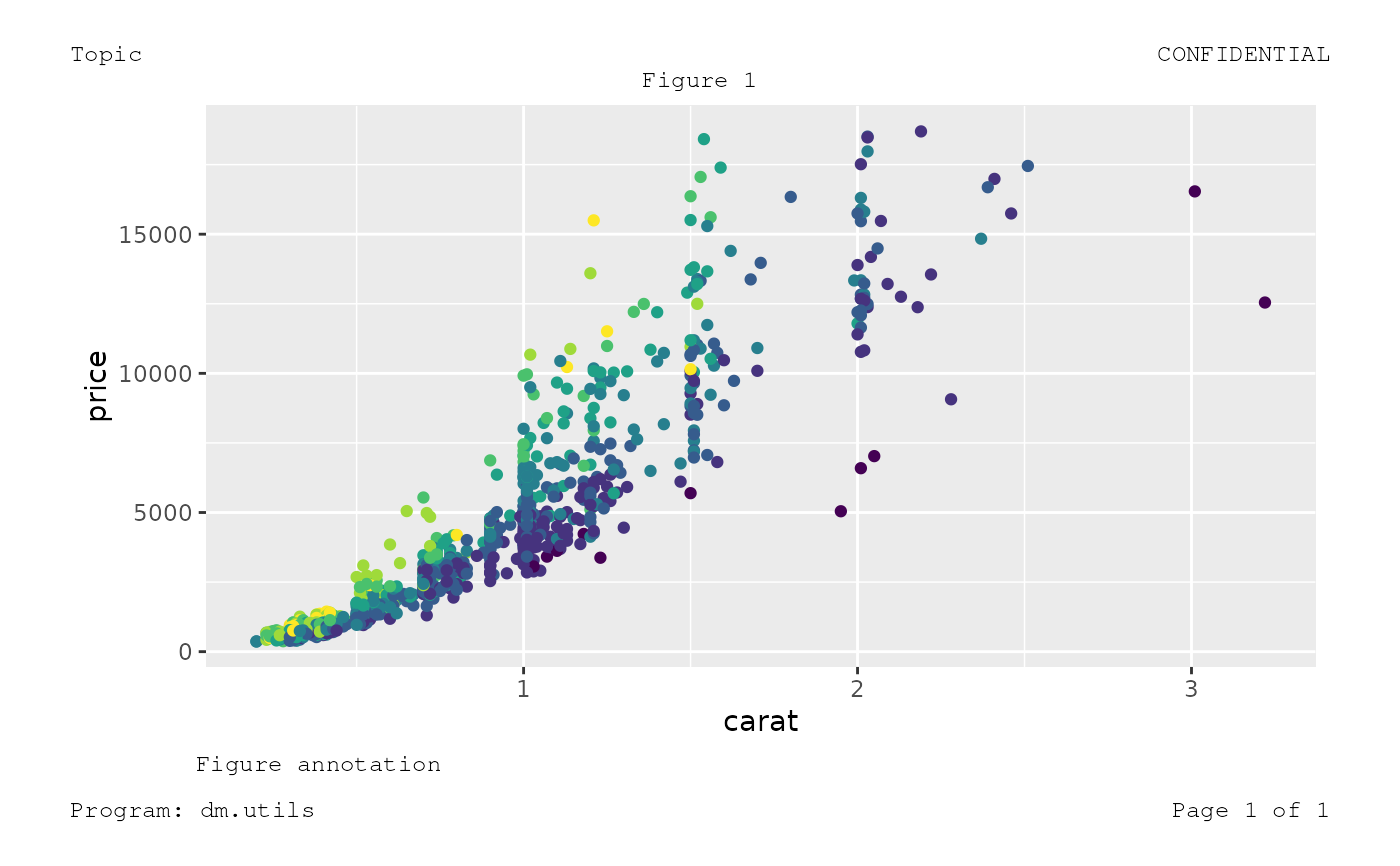

clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = gg) %>%
  grid.draw()


# Then add annotation elements, for instance, a title ...
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = gg, height = .5) %>%
  add_title("Figure 1") %>%
  grid.draw()


# ... and / or other elements ...
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = gg) %>%
  add_header(left = "Topic", right = "CONFIDENTIAL") %>%
  add_title("Figure 1") %>%
  add_note(text = "Figure annotation") %>%
  add_footer(left = "Program: dm.utils", right = "Page 1 of 1") %>%
  grid.draw()


# ... except `clean_slate` and `grid.draw`, the order does not matter
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_note(text = "Figure annotation") %>%
  add_header(left = "Topic", right = "CONFIDENTIAL") %>%
  add_title("Figure 1") %>%
  add_figure(gr = gg) %>%
  add_footer(left = "Program: dm.utils", right = "Page 1 of 1") %>%
  grid.draw()


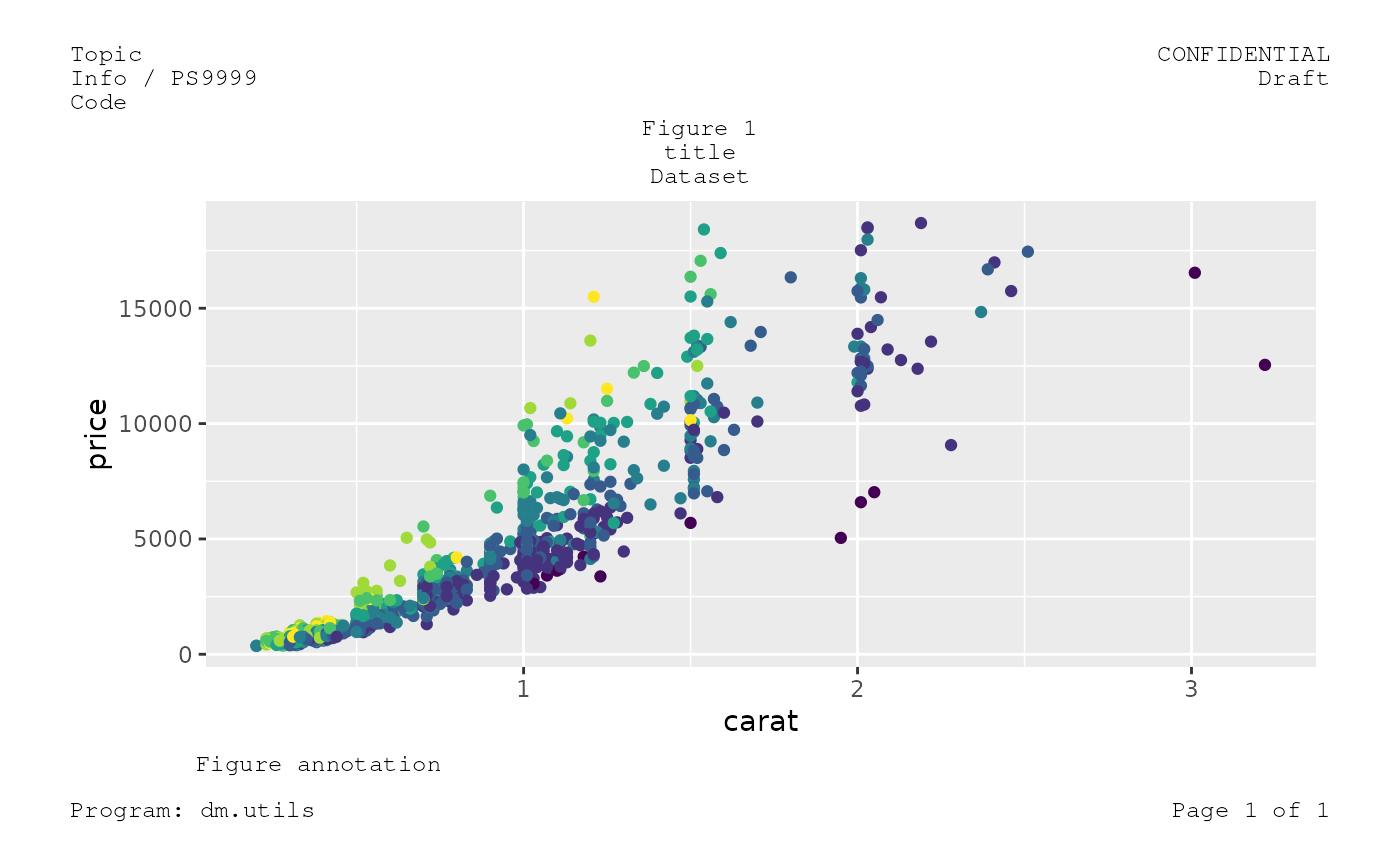

# For several lines of annotation, provide a vector
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = gg) %>%
  add_header(
    left = c("Topic", "Info / PS9999", "Code"),
    right = c("CONFIDENTIAL", "Draft")
  ) %>%
  add_title(text =  c("Figure 1", "title", "Dataset")) %>%
  add_note(text = "Figure annotation") %>%
  add_footer(left = "Program: dm.utils", right = "Page 1 of 1") %>%
  grid.draw()


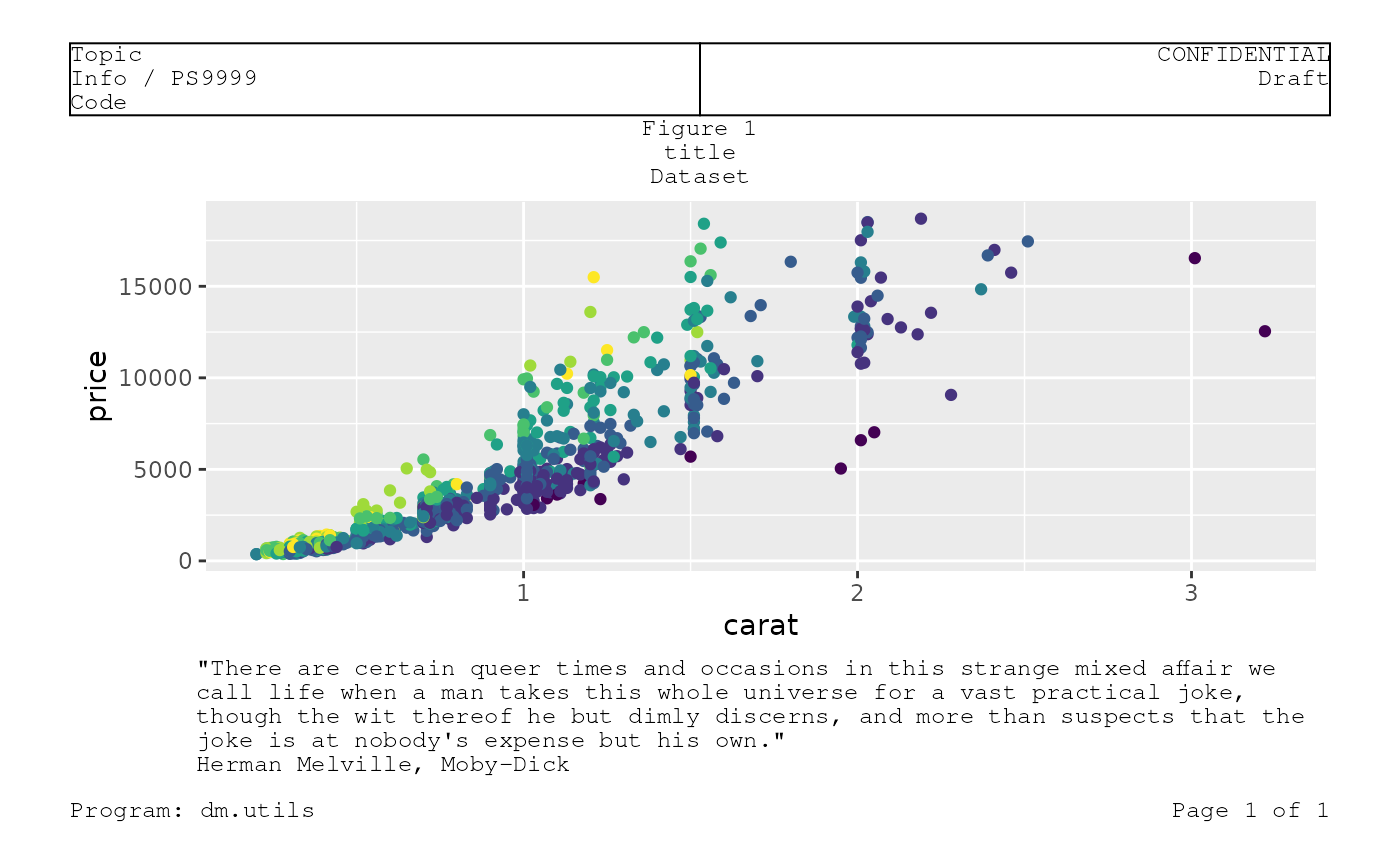

# By default, notes start at 10% of width and span over 80 characters
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = gg, width = .5) %>%
  add_header(
    left = c("Topic", "Info / PS9999", "Code"),
    right = c("CONFIDENTIAL", "Draft")
  ) %>%
  add_title(text = c("Figure 1", "title", "Dataset")) %>%
  add_note(
    text = c(
      "\"There are certain queer times and occasions in this strange mixed
      affair we call life when a man takes this whole universe for a vast
      practical joke, though the wit thereof he but dimly discerns, and more
      than suspects that the joke is at nobody's expense but his own.\"",
      "Herman Melville, Moby-Dick"
    )
  ) %>%
  add_footer(left = "Program: dm.utils", right = "Page 1 of 1") %>%
  grid.draw()


# Check the layout by adding guides
clean_slate(margin = unit(rep(0.05, 4), units = "npc")) %>%
  add_figure(gr = gg) %>%
  add_header(
    left = c("Topic", "Info / PS9999", "Code"),
    right = c("CONFIDENTIAL", "Draft"),
    guide = TRUE
  ) %>%
  add_title(text = c("Figure 1", "title", "Dataset")) %>%
  add_note(
    text = c(
      "\"There are certain queer times and occasions in this strange mixed
      affair we call life when a man takes this whole universe for a vast
      practical joke, though the wit thereof he but dimly discerns, and more
      than suspects that the joke is at nobody's expense but his own.\"",
      "Herman Melville, Moby-Dick"
    )
  ) %>%
  add_footer(left = "Program: dm.utils", right = "Page 1 of 1") %>%
  grid.draw()
